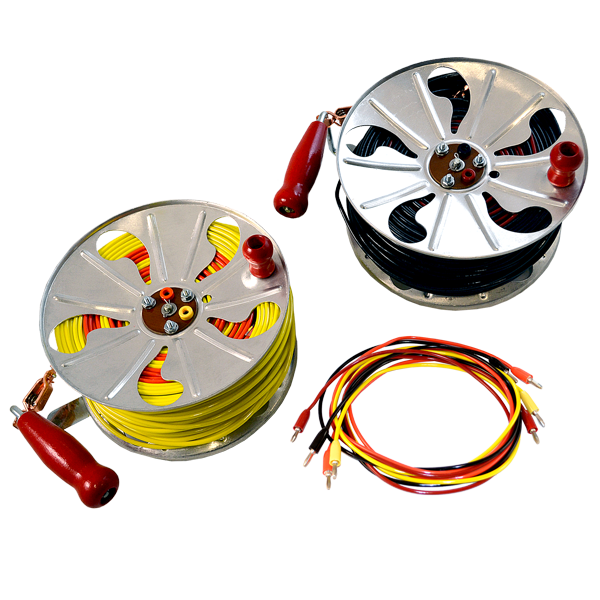

Dual reel wiring system offers a maximum pin spacing, with respect to a 4-pin linear array (Wenner methodology), of 120 ft (approx. 40 meters). Both reels are positioned at the center of the linear array, as opposed to at one end, and each reel has a 180 ft long wire and a 60 ft long wire. Please click on the “Instruction Manual” button above to view the dual reel configuration.
Dual reel wiring system comes with a set of four (4 ft long) color coded banana plug leads (Cat. # 44698) used to connect the two wires on each reel to a 4-terminal resistance meter [see Miller 400A or Miller 400D]
Each reel has the following features:
• Stamped aluminum construction with an anti-backlash drag.
• Lightweight
• Houses two color coded banana jack terminals (for banana plug cable connection to a 4-terminal resistance meter)
