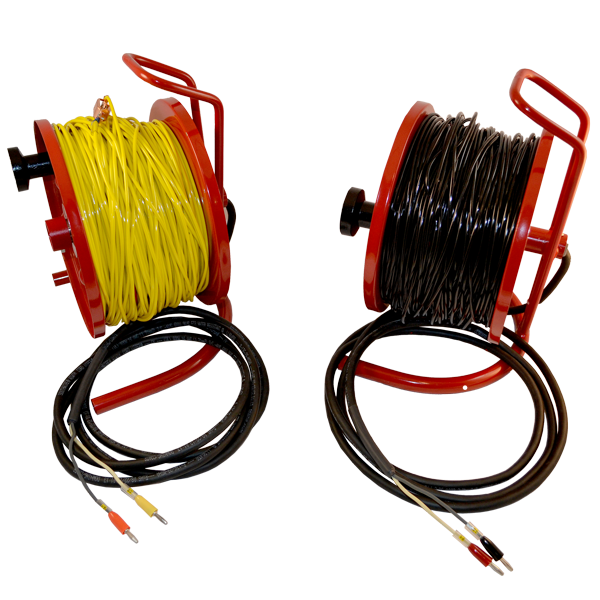

Dual reel wiring system offers a maximum pin spacing, with respect to a 4-pin linear array (Wenner methodology), of 240 ft (approx. 80 meters). Both reels are positioned at the center of the linear array, as opposed to at one end, and each reel has a 360 ft long wire and a 120 ft long wire. Please click on the “Instruction Manual” button above to view the dual reel configuration.
Each reel has the following features:
• 18 Gauge Steel Construction
• Balanced Carrying Handle
• Adjustable Brake
• Simple Clamp-on Connectors
• Totally Enclosed Collector
