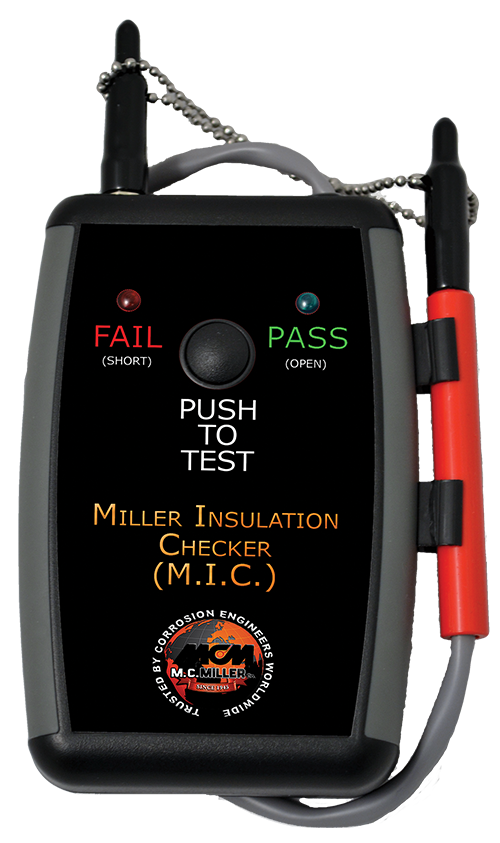

M. C. Miller has created a DIGITAL Above Ground Insulation Checker which is:
COMPACT- Fits easily in your hand or carried in your back pocket
SIMPLE TO USE - Employs bright Pass/Fail LEDs for quick readings
EFFICIENT - ‘Push-To-Test’ button ensures no power is wasted when the unit is idle, greatly increasing battery life MODEL FEATURES
Uses Radio Frequency technology to distinguish between insulation shorts and shorts associated with interconnected piping
Checks all types and sizes of insulators - Flanges, dressers, couplings or unions - whether in parallel or series
Locates shorted bolts - Eliminates costly and unnecessary replacement of good bolt insulators
Evaluates partially shorted insulators
Easy to operate - Clear operating procedure reduces training time
Quick - Fast "touch probe" operation eliminates guesswork and additional wires, coils, etc. SPECIFICATIONS
Enclosure: Heavy duty electronic instrument enclosure. Molded in flame retardant ABS plastic./li>
'Power Source: Two AA size alkaline batteries/li> '
Operating Temperature Range (alkaline battery limited): -4ºF to 131ºF (-20ºC to +55ºC)
'Recommended Storage Temperature Range (alkaline battery limited): -4ºF to 95ºF (-20ºC to +35ºC)'
Max Dimensions: 6.2”L x 3.6”W x 1.5”H (15.8cm x 9.1cm x 3.8cm)
